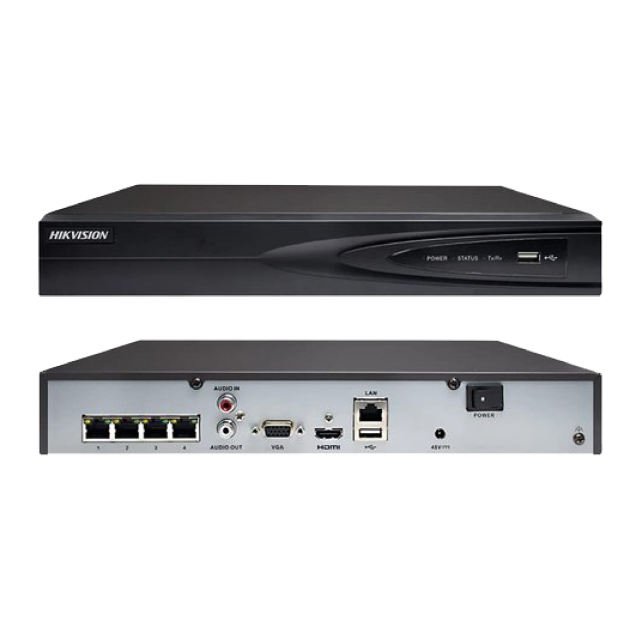

DS-7604NI-K1/4P
4-ch 1U 4 PoE 4K NVR
Professional and Reliability
- H.265+ compression effectively reduces the storage space by up to 75%
HD Video Output
- Provide simultaneous HDMI and VGA outputs
- HDMI video output at up to 4K resolution
Storage and Playback
- 1 SATA interface for HDD connection (up to 8 TB capacity per HDD)
- Smart search/smart playback to improve the playback efficiency
Smart Function
- Support multiple VCA (Video Content Analytics) events
- Configurable special camera smart functions, such as VCA detection (motion, line crossing, intrusion, etc.), heat map, ANPR, and people counting
Network & Ethernet Access
- 4 independent PoE network interfaces
- 1 self-adaptive 10/100 Mbps Ethernet interface
- Hik-Connect for easy network management
Product Specifications
IP video input |
4-ch
|
Incoming bandwidth |
40 Mbps |
Outgoing bandwidth |
80 Mbps |
HDMI output |
1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz,
|
VGA output |
1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz |
Video output mode |
HDMI/VGA simultaneous output |
CVBS output |
N/A |
Audio output |
1-ch, RCA (Linear, 1 KΩ) |
Decoding format |
H.265+/H.265/H.264+/H.264 |
Recording resolution |
8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF |
Synchronous playback |
4-ch |
Capability |
1-ch@8 MP (30 fps)/5-ch@1080p (30 fps) |
Remote connection |
16 |
Interface |
4, RJ-45 10/100 Mbps self-adaptive Ethernet interface |
SATA |
1 SATA interface |
Capacity |
Up to 8 TB capacity for each disk |
USB interface |
Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0 |
Power supply |
48 VDC, 1.35 A |
Working temperature |
-10 °C to 55 °C (14 °F to 131 °F) |
Dimension (W × D × H) |
320 × 240 × 48 mm (12.6″ × 9.4″ × 1.9″) |
Weight (without HDD) |
≤ 1 kg (2.2 lb) |
